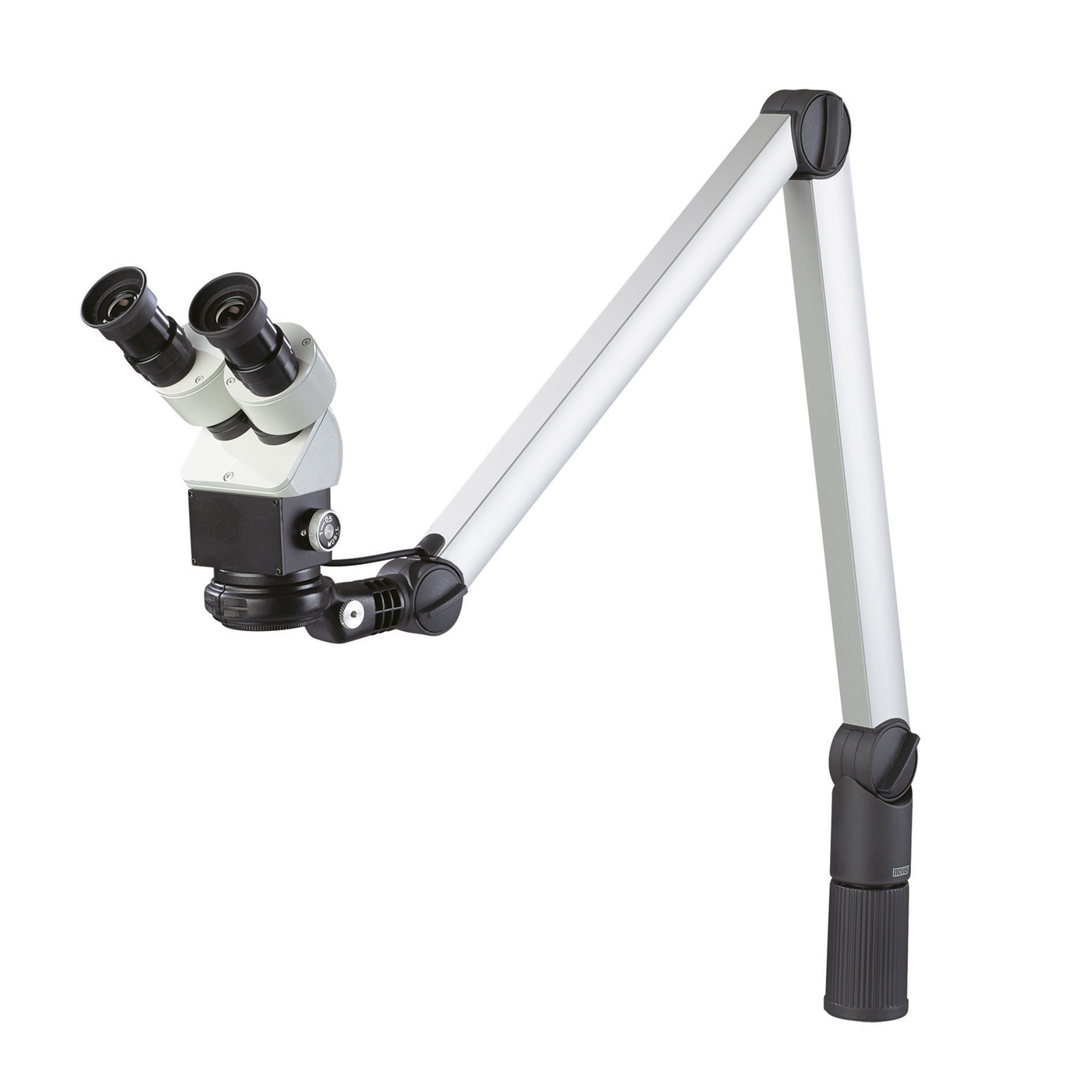

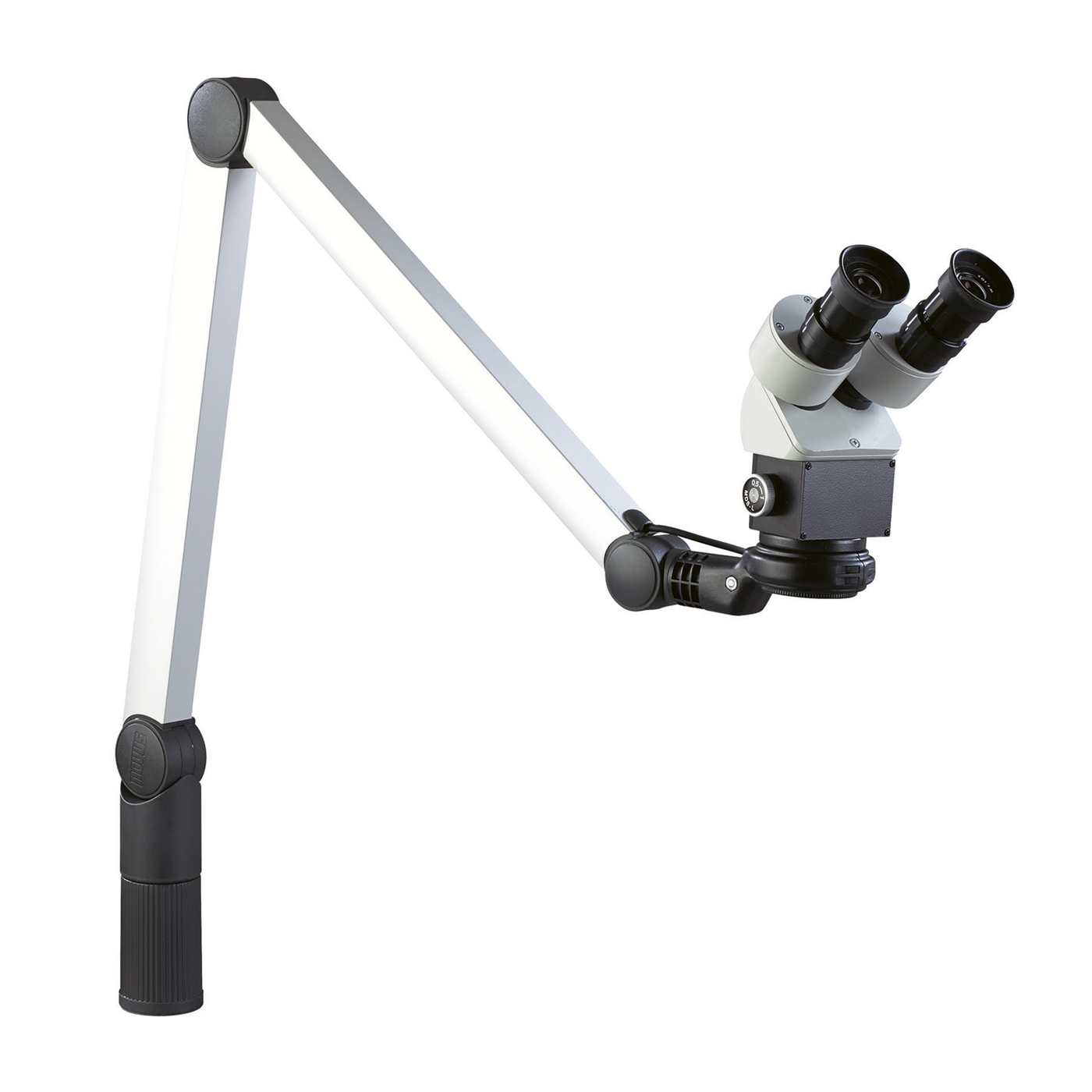

Mobiloskop S, Standard
Picture may vary from actual product.
Item number
01660
1 piece
Please log in to see the price information
available, in stock
partially in stock
Questions about the product
With 360° swivel-mounted spring-loaded hinged arm. For detailed control and precision work.
Advantages:
- 5 and 10 times magnification for maximum precision;
- Aspherical lenses for a distortion-free image with high marginal sharpness;
- Bilateral dioptre compensation for three-dimensional view;
- Interpupillary distance individually adjustable;
- Individually adjustable in all directions;
- Suitable for up to four workplaces.
Technical data:
- 5 and 10 times magnification; path of rays 45° angled; ø visual field 44 mm at 5 times magnification and 22 mm at 10 times magnification; depth of field 22 mm at 5 times magnification and 10 mm at 10 times magnification; working distance 150 mm; bench clamp clamping width 18-74 mm; 1.83 kg.
Delivery includes:
- Mobiloskop S complete with spring-loaded hinged arm and stand with bench clamp. Delivery without illumination.
