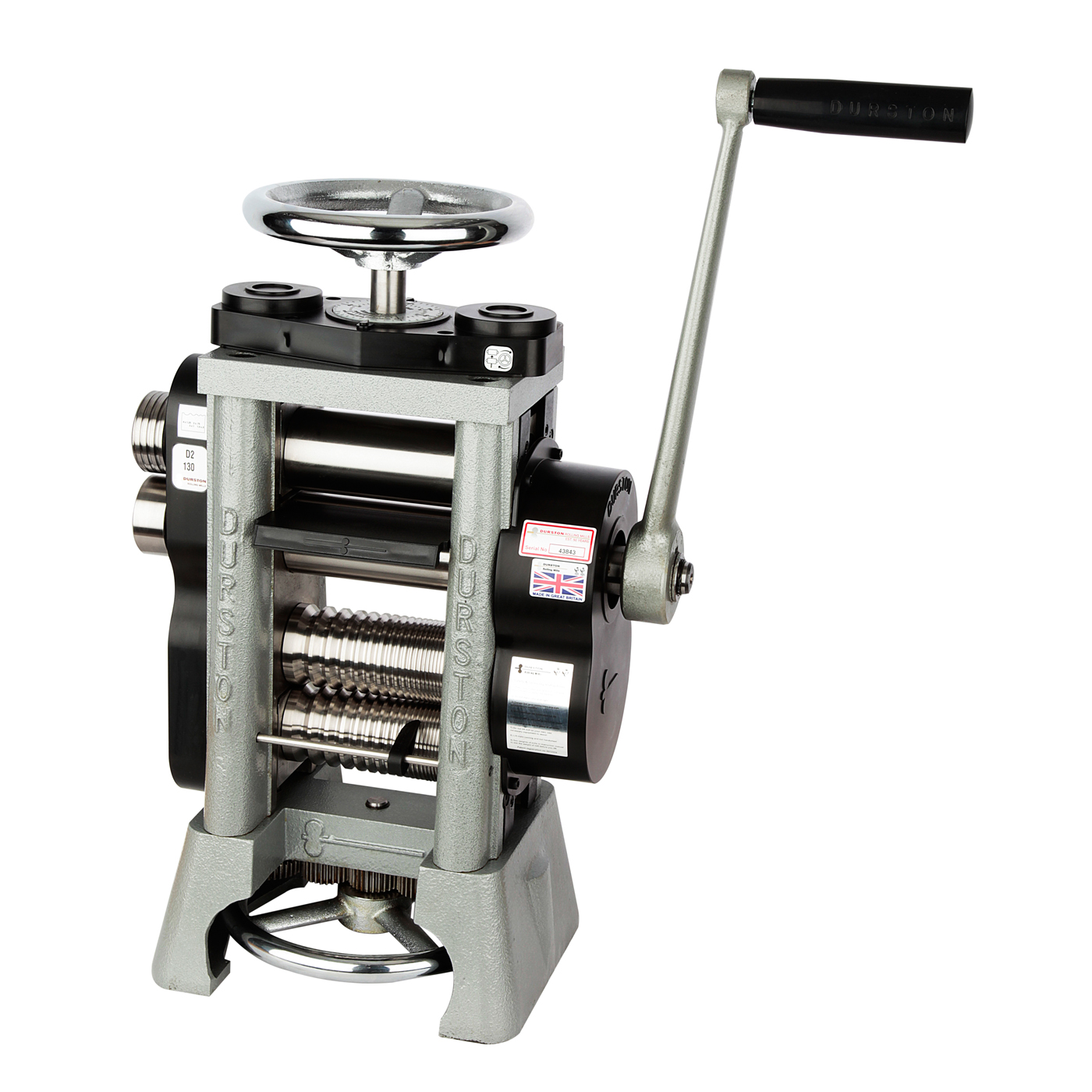

D2 130 Double Rolling Mill, without Stand

Picture may vary from actual product.

Item number G10006

1 piece

will be ordered, not in stock

Questions about the product

Wishlist

For sheet metal and wire. With additional external half-round profiles. Built as one-piece, cast iron construction with maintenance-free bearings and rollers made of high-strength steel alloy. Easy reading of the roll setting by calibrated scale.
Double rolling mill with two pairs of rolls and two adjusting wheels.

Technical data:

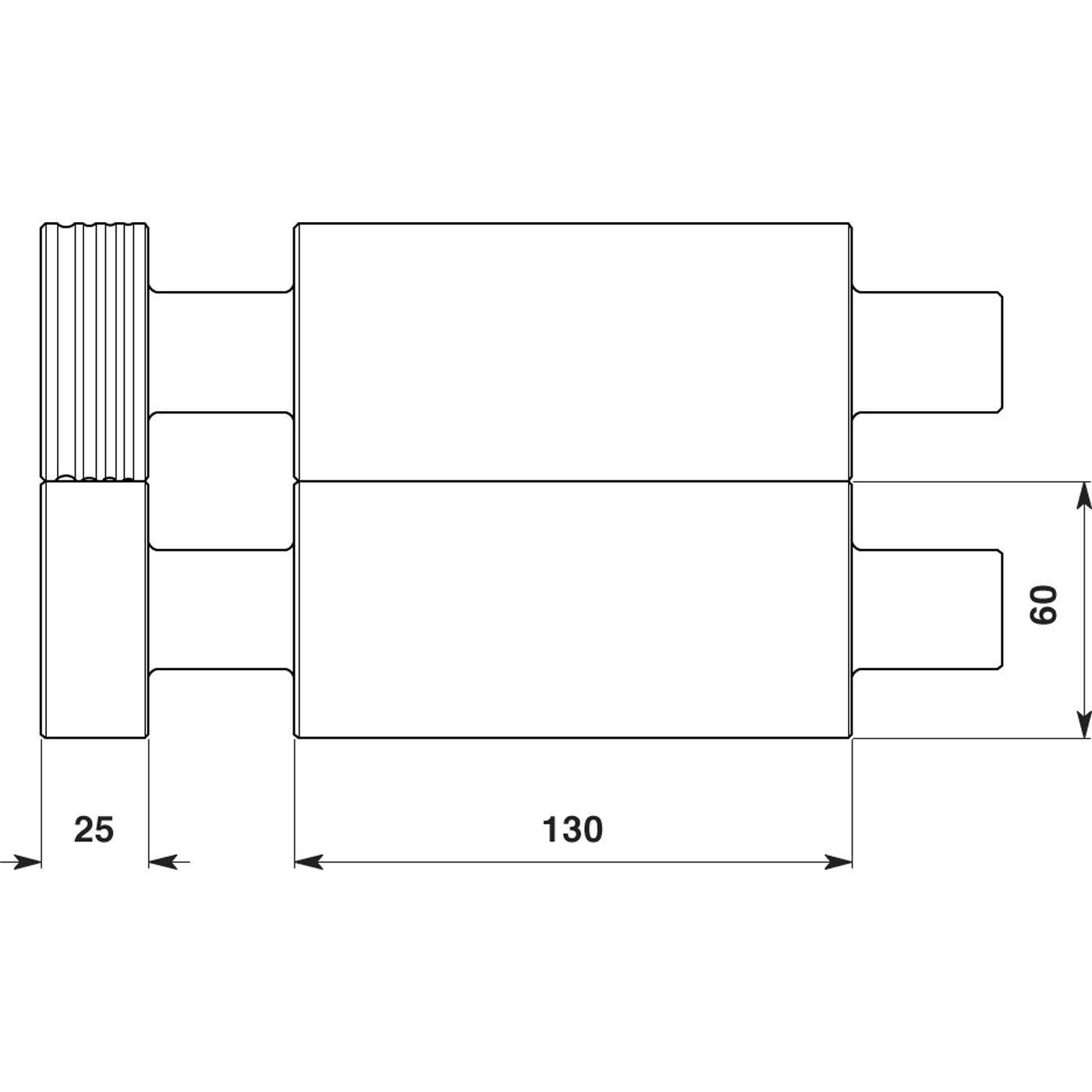

42.0 x 22.0 x 56.5 cm (without crank and stand); roll dimension for pair of sheet metal rolls 130 x 60 mm; working range: sheet metal thickness up to 7 mm; roll dimension for pair of wire rolls width 130 mm; wire thickness 1-10 mm; 19 wire grooves; reduction sheet metal 7 : 1; wire 3.5 : 1; design rolls 1.5, 2.0, 3.0, 4.0 mm; 70 kg (without stand).

Delivery includes:

D2 130 complete with hand crank.
without stand
