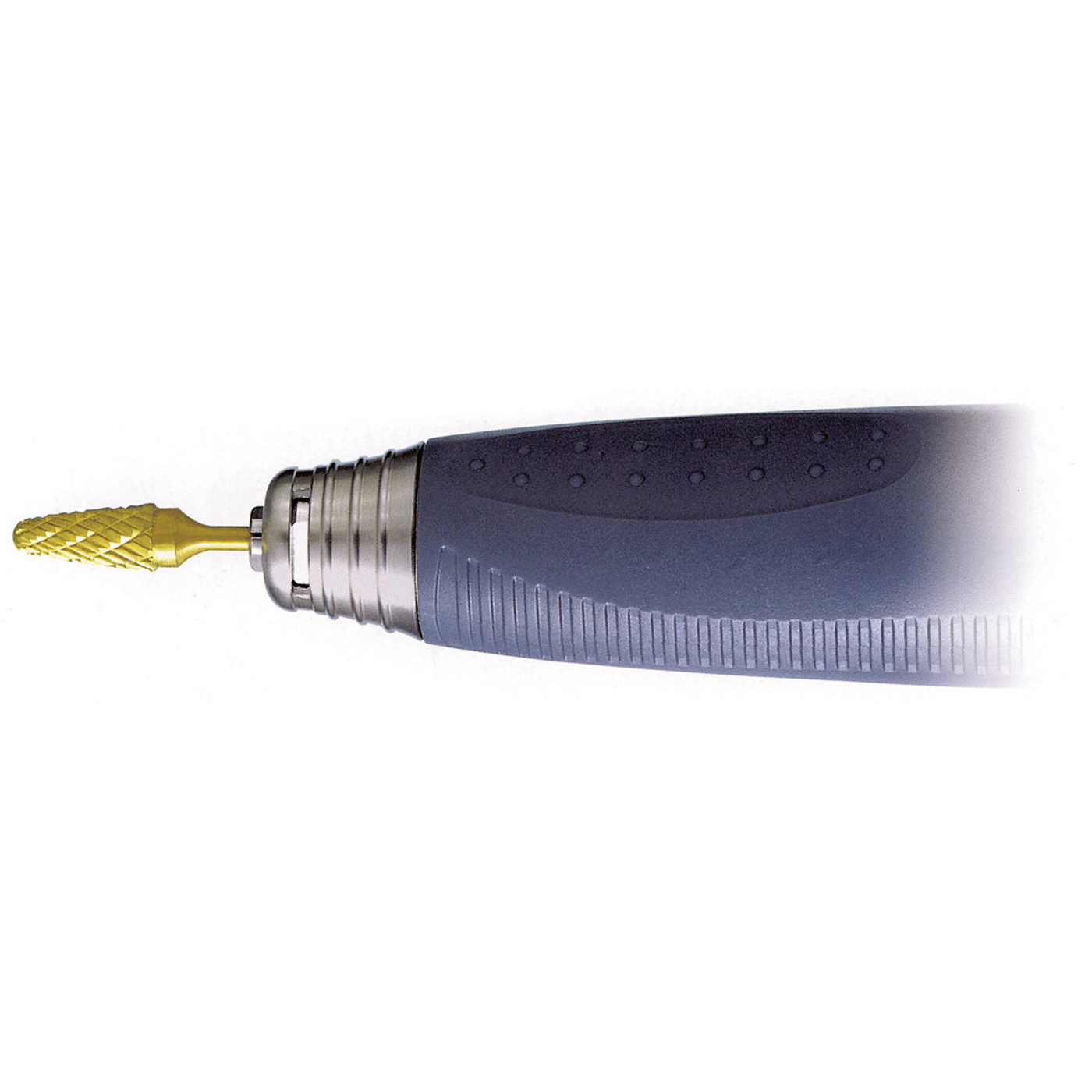

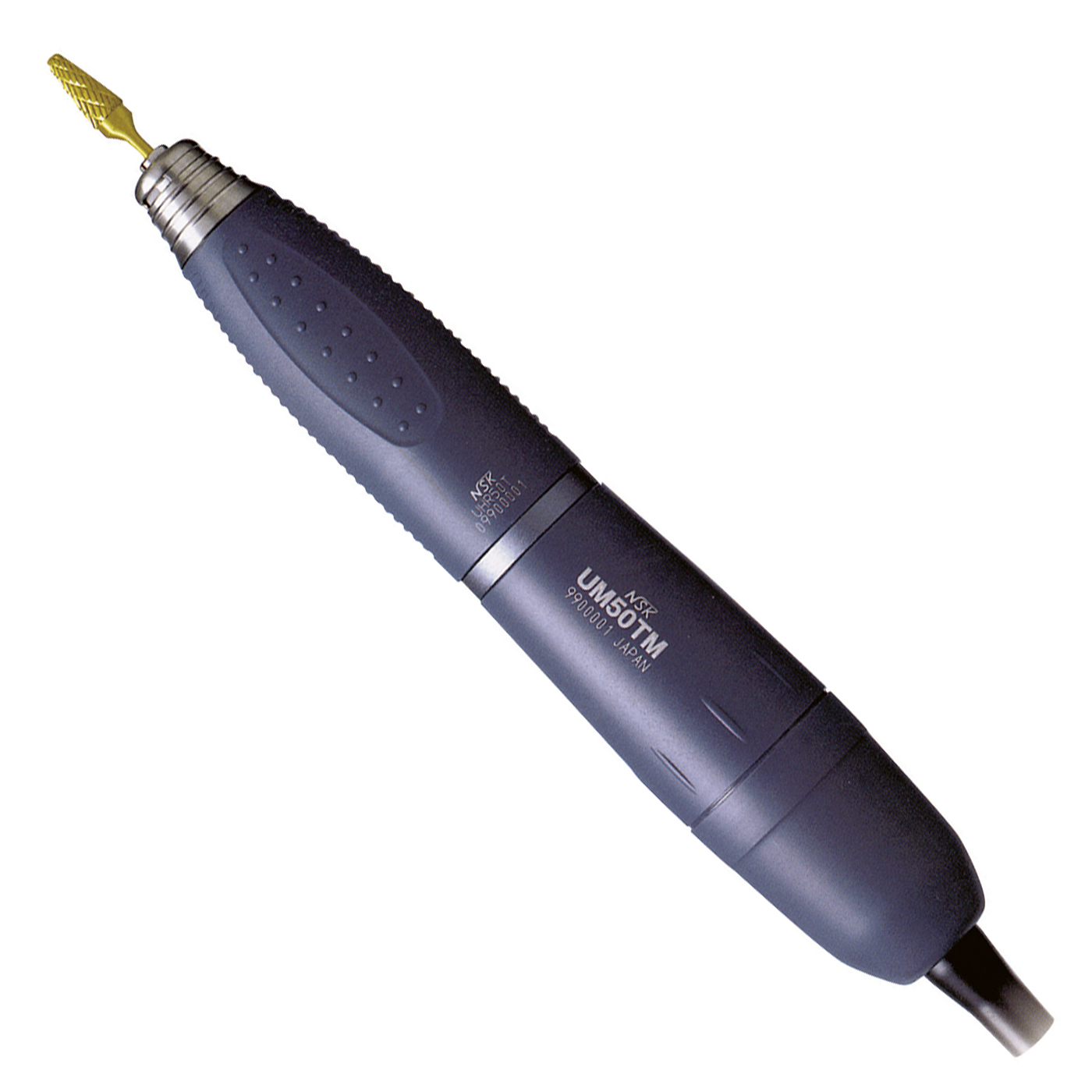

UM50T Micromotor Handpiece
Picture may vary from actual product.
Item number
50870
1 piece
Please log in to see the price information
available, in stock
partially in stock
Questions about the product

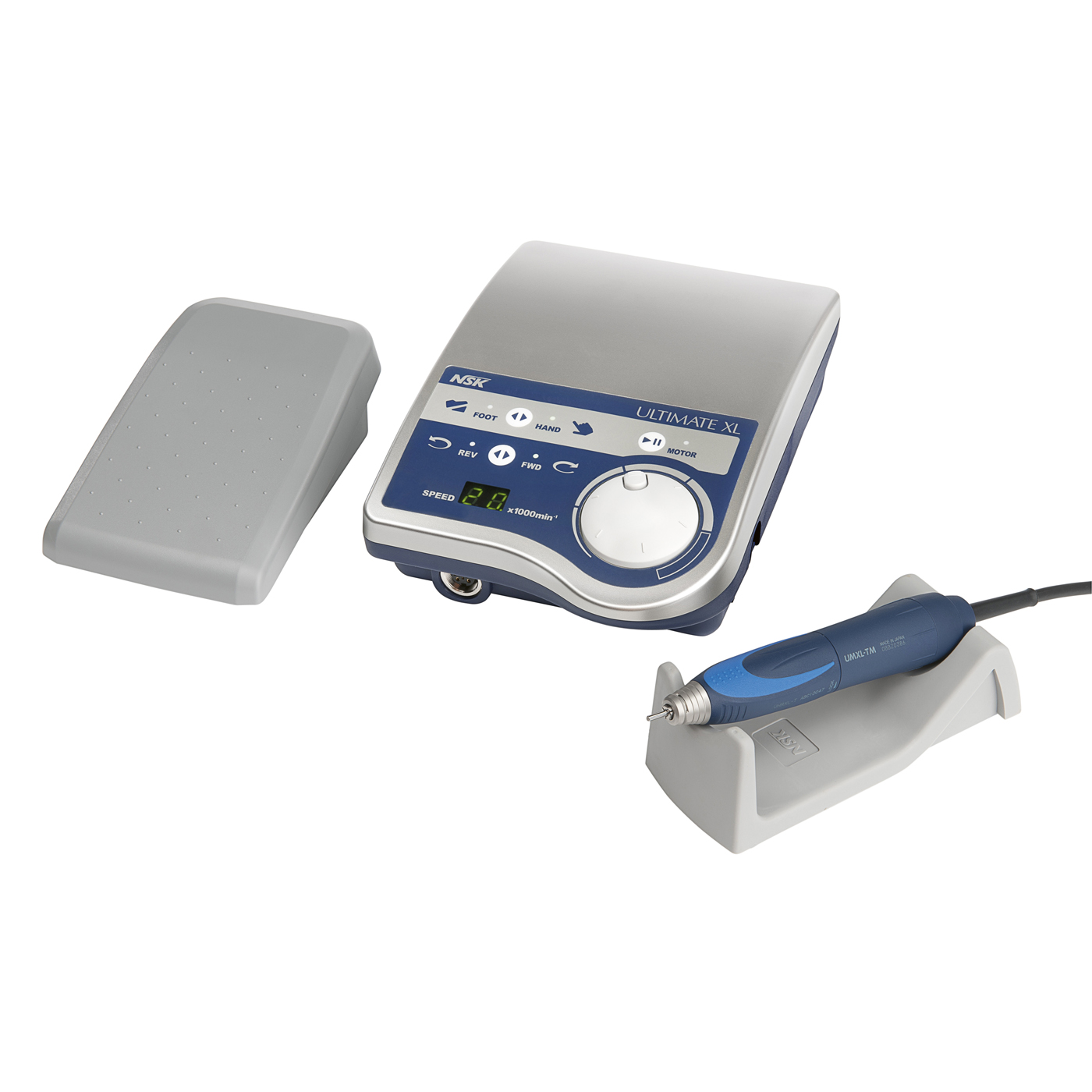

NSK has reached the highest standard in regard to performance and handling with the Ultimate 500 knee and tabletop models.
Three-phase motor handpieces, speed 1,000-50,000 rpm; cable length 1,2 m.
Torque Type
• Speed range between 10,00-50,000 rpm:
- Run speed infinitely variable in all speed ranges;
- Gentle true running and strong output at all speeds and especially at highest speed.
• Special dust repelling mechanism (Clean Head):
- Handpiece is equipped with a patented dust repelling device, that protects ball bearings and chuck against pollution and minimizes wear and tear.
• Low vibration, silent:
- NSK Machine technology enables an almost noiseless and vibration-free working (noise level around 20 % lower compared to conventional motors).
• Outstanding durability:
- The Ultimate 500 is a high-performance three-phase current motor. It operates without carbon brushes, thus no abrasion or wear.
Three-phase motor handpieces, speed 1,000-50,000 rpm; cable length 1,2 m.
Technical data:
- 164 x ø 29 mm; max. consumption 250 W; max. torque 8.7 Ncm; weight without cable 230 g.
Torque Type
